Zhongyang Sams CNC Lathe

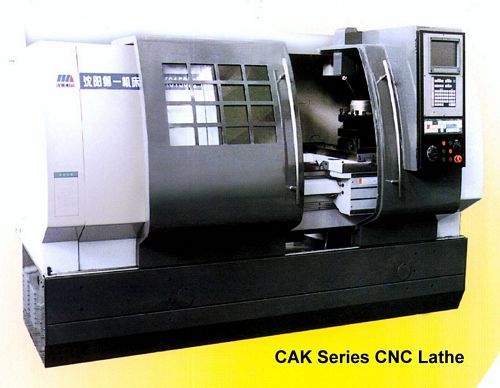

China CAK6136 CNC Lathe

NLCSY002:

New, China CAK6136 CNC Lathe

  • Swing Over Bed 360 mm
  • Max Workpiece Length 750 / 1000 mm
  • Swing Over Saddle 180 mm
  • Max Cutting Length 620 / 870 mm
  • Max Cutting Diameter 360 mm
  • Manual Chuck Diameter 205 mm
  • Span of Guideway 340 mm
  • Spindle Bore Dia 52 mm, Spindle Nose A6
  • Spindle Speed 200-2400 RPM, Stepless
  • Frequency Inverter Motor Power 7.5 kW
  • Toolpost Traverse X/Z: 4/10 m/min
  • Indexing 4-Way Electric Toolpost: 2.2 s/step
  • Toolpost Rotative Positioning Repeatability Accuracy 0.008 mm
  • Workpiece Accuracy IT6-IT7
  • Stroke of X Axis 225 mm
  • Surface Roughness Ra1.6
  • Stroke of Z Axis 620 / 870 mm
  • Dia of Tailstock Quill 70 mm
  • Stroke of Tailstock Quill 130 mm
  • Tailstock Taper MT4
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
