Zhongyang Sams CNC Lathe

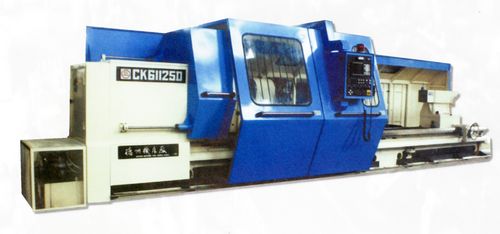

China CK61125D x 8000 CNC Lathe


New, China CK61125D x 8000 CNC Lathe

  • Max Workpiece Length 8000mm
  • Max Cutting Length 7800mm
  • Max Swing Over Bed 1250mm
  • Max Swing Over Saddle 880mm
  • Spindle Bore Diameter 130mm
  • Width of Bed 755mm
  • Spindle Speed Range (stepless) 5 to 300 RPM
  • Front Taper of Spindle Bore: Metric 140
  • Max Travel on X-axis 650mm
  • Max Travel on Z-axis 7900mm
  • Min Setting Unit on X-axis 0.0005mm
  • Min Setting Unit on Z-axis 0.001mm
  • Rapid Speed on X & Z-axis 8m/min
  • CNC Control System: Fanuc OTD
  • Taper of Tailstock Sleeve MT6
  • Max Travel of Tailstock Sleeve 300mm
  • Diameter of Tailstock Sleeve 140mm
  • Number of Tools on Turret: 4
  • Section Size of Tool Bar 32x32
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
