Profile Cutting Machine

NKPZC001:

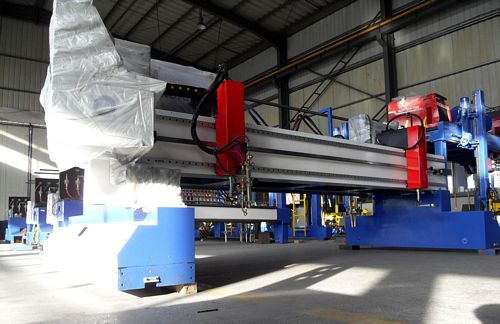

New, CNC-3000/9000 Plasma/Flame Cutting Machine Without Cutting Table

C/w Hypertherm Max200 Power Source
Transverse track distance 4000mm
Effective cutting length 9000mm
Effective cutting width 2500mm
Track length 10,000mm
Cutting velocity 12-1447 mm/min (57 ipm Optimum quality)
Fast return velocity 22,000 mm/min (optional)
Process accuracy ±0.5mm/1000 mm
Cutting surface roughness <= Ra12.5
Arc pressing automatic height adjustment: 1
CNC plasma cutting torch: 1
CNC transverse flame cutting torch: 1
Thickness of flame cutting steel plate 6-150mm (adopt special nozzle up to 200mm)
Thickness of plasma cutting steel plate 3-19mm
Thickness of plasma perforation: max 19mm

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used profile cutting machine (flame cutting machine, plasma cutting machine, flame cutter, profile cutter, plasma cutter, profile cutting machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
