Sams Dener FL3015 8 KW Fiber Laser

NKLDN001:

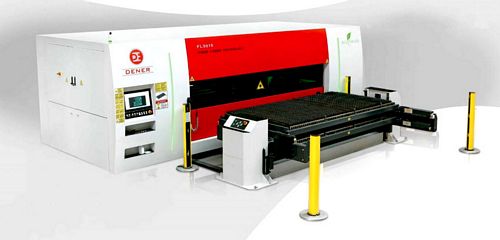

New, Sams Dener FL3015 8 KW Fiber Laser

  • Resonator power 8000 W
  • Total electrical power consumption below 30 kW
  • Fiber core diameter 100µm
  • Max cutting thickness 30mm
  • Stainless steel 20mm
  • Aluminium 14mm
  • Brass 10mm
  • Net cutting dimensions 1530 x 3050mm
  • X, Y Axes drive system: Rack & pinion
  • Z Axis drive system: Ball screw
  • Z Axis stroke 120mm
  • Max simultaneous X, Y axes speed 133 m/min
  • Max Z axis speed 40 m/min
  • Max acceleration X, Y axes 2.2 G
  • Max Z axis acceleration 3 G
  • Positioning accuracy 0.05mm
  • Repeatability accuracy 0.02mm
  • Pallete-to-pallete change time 30 s
  • Operator panel 21.5" wide multi touch panel
  • Assist gas: Oxygen, Nitrogen, Compressed Air
  • Weight approximately 15 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used laser cut machinery (laser, laser cutting machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
