Zhongyang Sams Cut to Length Line


Italy CL-3x1600 Coil Cut To Length Line Machine

NKCSJ001:

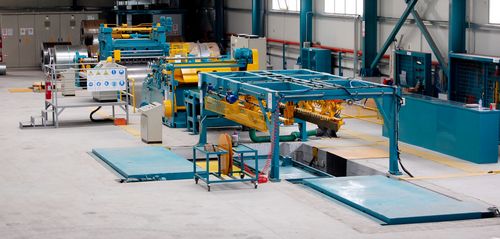

New, Italy CL-3x1600 Coil Cut To Length Line Machine

  • Range of thickness 0.5 - 3 mm
  • Range of width 500 - 1600 mm
  • Weight of coil 20 ton
  • Material: cold-rolled sheet coil, galvanized sheet
  • Yield strength σs ≤  280 Mpa
  • Tensile strength σb ≤  480 Mpa
  • Coil inner diameter 508mm, 610 mm
  • Coil outer diameter ≤1800mm
  • Cutting efficiency 22 sheet/min
  • Shearing length 2000mm
  • Scale width 500 -1600 mm; length 500 - 4000 mm
  • Scale length accuracy ±0.5 mm/2m
  • Scale accuracy on the diagonal ±0.5 mm/m
  • Max leveling feed speed 60 m/min
  • Power 110 kW
  • Machine elevation 1100mm
  • Power supply 50±1 Hz
  • Gas usage 1 m3/min
  • Gas pressure 0.4 - 0.6 Mpa
  • Weight approximately 78 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cut to length line (cut to length line), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
