Zhongyang Sams Power Press

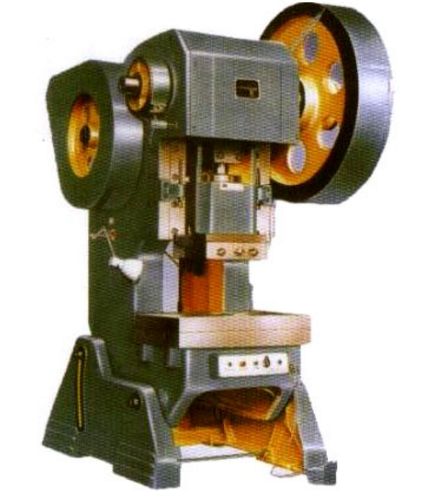

China J23-16 Open Back Inclinable Power Press

NHWZC001:

New, China J23-16 Open Back Inclinable Power Press

  • Nominal capacity 160 KN
  • Ram stroke 55mm
  • Stroke frequency: high speed 120 times per min
  • Max shut height 220mm
  • Shut height adjustment 45mm
  • Depth of throat 160mm
  • Ram bottom face dimensions: (LxB) 200mm; (FxB) 180mm
  • Hole for punch shank (dia x depth): 40 x 60 mm
  • Thickness of bolster 40mm
  • Max angle of inclination 35°
  • Height of bed 750mm
  • Overall dimensions: (FB x LR X H): 1150 x 847 x 1910 mm
  • Distance between foundation bolts: (F to B) 780mm; (L to R) 450mm
  • Motor power 1.5 kw
  • Weight approximately 1.1 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used power press (power press, hydraulic power press, mechanical power press, eccentric press, forming press, inclinable power press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
