Zhongyang Sams Power Press


China JB23-63A Inclinable Power Press

NHWAM008:

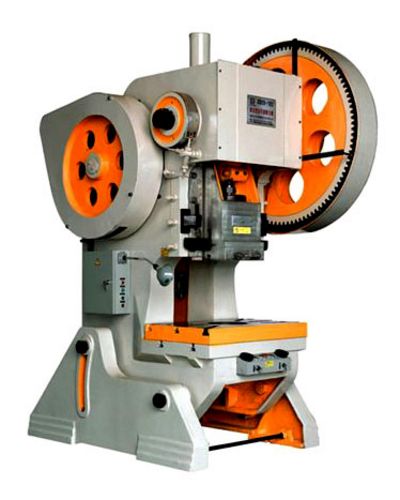

New, China JB23-63A Inclinable Power Press

  • Rated pressure 630 KN
  • Block travel 100mm
  • Travel times 40 min
  • Max die set height 310mm
  • Die set height adjustment 80mm
  • Distance from slide block center to frame 310mm
  • Worktable dimension: (F to B x R to L) 570 x 860mm
  • Dimension of slide block bottom surface: (F to B x R to L) 340 x 400mm
  • Size of handle hole: (diameter x depth) 50 x 80mm
  • Inclinable angle of body 30°
  • Motor power 7.5 kw
  • Overall Dimensions: 194 mm (L) x 151 mm (W) x 287 mm (H)
  • Weight approximately 5.6 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used power press (power press, hydraulic power press, mechanical power press, eccentric press, forming press, inclinable power press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
