Zhongyang Sams Power Press


China J23-16 Inclinable Power Press

NHWAM005:

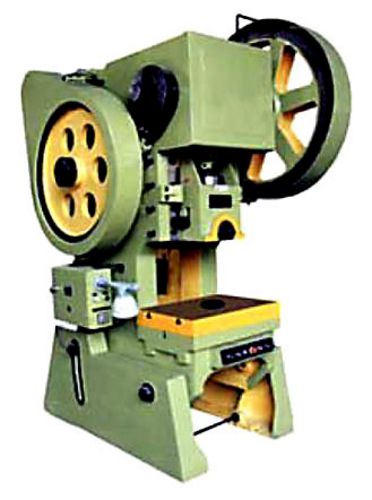

New, China J23-16 Inclinable Power Press

  • Rated pressure 160 KN
  • Block travel 55mm
  • Travel times 120 min
  • Max die set height 180mm
  • Die set height adjustment 45mm
  • Distance from slide block center to frame 160mm
  • Worktable dimension: (F to B x R to L) 300 x 450mm
  • Dimension of slide block bottom surface: (F to B x R to L) 180 x 200mm
  • Size of handle hole: (diameter x depth) 40 x 60mm
  • Inclinable angle of body 35°
  • Motor power 1.5 kw
  • Overall Dimensions: 113 mm (L) x 84 mm (W) x 190 mm (H)
  • Weight approximately 1.1 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used power press (power press, hydraulic power press, mechanical power press, eccentric press, forming press, inclinable power press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
