Zhongyang Sams Section Bending Machine


China W24S-75 Section Bending Machine

NHSYL013:

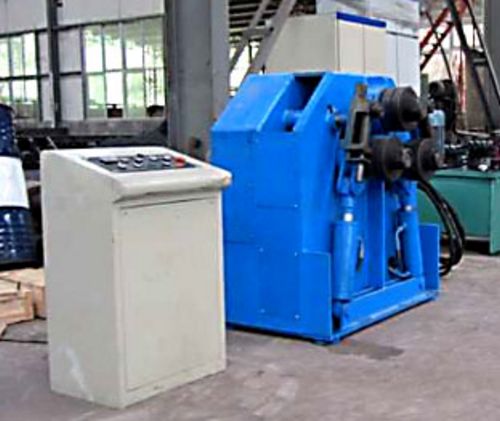

New, China W24S-75 Section Bending Machine

  • Max section modulus 75 cm³
  • Angle leg out: Max cross section 120x120x10 mm; Min bending diameter 2000mm
  • Angle leg in: Max cross section 110x110x10 mm; Min bending diameter 2400mm
  • Flat-along face: Max cross section 110x40 mm; Min bending diameter 1500mm
  • Flat-along edge: Max cross section 220x40 mm; Min bending diameter 1500mm
  • U-beam leg-out: U-beam model 22; Min bending diameter 2000mm
  • U-beam leg-in: U-beam model 25; Min bending diameter 2500mm
  • Solid bar: diameter 80mm; Min bending diameter 1200mm
  • Pipe (diameter x pipe thickness): 89x10 mm; Min bending diameter 1400mm
  • T-beam (width (height) x thickness): 100x10 mm; Min bending diameter 2000mm
  • I-beam: I beam model 16; Min bending diameter 2200mm
  • Square (width x thickness): 90x8 mm; Min bending diameter 1600mm
  • Rectangular (length x width x thickness): 100x50x5 mm; Min bending diameter 1800mm
  • Bending speed 5 m/min
  • Hydraulic pressure 20 Mpa
  • Main motor 11 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
