Zhongyang Sams Section Bending Machine


China W24S-500 Section Bending Machine

NHSYL012:

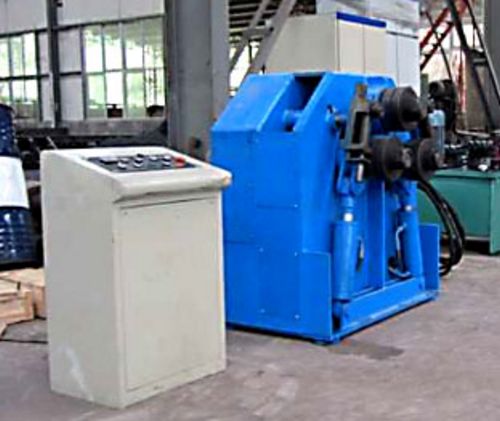

New, China W24S-500 Section Bending Machine

  • Max section modulus 500 cm³
  • Angle leg out: Max cross section 250x250x25 mm; Min bending diameter 4000mm
  • Angle leg in: Max cross section 200x200x25 mm; Min bending diameter 4000mm
  • Flat-along face: Max cross section 200x60 mm; Min bending diameter 3000mm
  • Flat-along edge: Max cross section 500x70 mm; Min bending diameter 2500mm
  • U-beam leg-out: U-beam model 50; Min bending diameter 5000mm
  • U-beam leg-in: U-beam model 50; Min bending diameter 6000mm
  • Solid bar: diameter 180mm; Min bending diameter 3000mm
  • Pipe (diameter x pipe thickness): 300x10 mm; Min bending diameter 6000mm
  • T-beam (width (height) x thickness): 200x16 mm; Min bending diameter 6000mm
  • I-beam: I beam model 45; Min bending diameter 6000mm
  • Square (width x thickness): 200x12 mm; Min bending diameter 4000mm
  • Rectangular (length x width x thickness): 200x120x10 mm; Min bending diameter 4500mm
  • Bending speed 5 m/min
  • Hydraulic pressure 20 Mpa
  • Main motor 45 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
