China W24S-400 Section Bending Machine

NHSYL011:

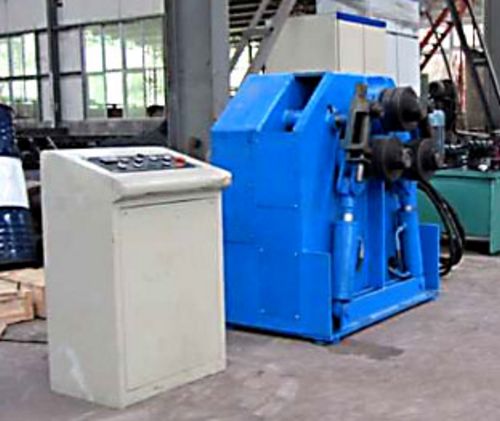

New, China W24S-400 Section Bending Machine

  • Max section modulus 400 cm³
  • Angle leg out: Max cross section 200x200x18 mm; Min bending diameter 3500mm
  • Angle leg in: Max cross section 180x180x16 mm; Min bending diameter 4000mm
  • Flat-along face: Max cross section 200x60 mm; Min bending diameter 3000mm
  • Flat-along edge: Max cross section 400x70 mm; Min bending diameter 2500mm
  • U-beam leg-out: U-beam model 40; Min bending diameter 4000mm
  • U-beam leg-in: U-beam model 40; Min bending diameter 5000mm
  • Solid bar: diameter 160mm; Min bending diameter 2500mm
  • Pipe (diameter x pipe thickness): 245x10 mm; Min bending diameter 5000mm
  • T-beam (width (height) x thickness): 186x16 mm; Min bending diameter 5000mm
  • I-beam: I beam model 40; Min bending diameter 5000mm
  • Square (width x thickness): 180x12 mm; Min bending diameter 3500mm
  • Rectangular (length x width x thickness): 200x100x10 mm; Min bending diameter 4000mm
  • Bending speed 5 m/min
  • Hydraulic pressure 20 Mpa
  • Main motor 37 kw
  • Overall Dimensions: 3,200 mm (L) x 3,200 mm (W) x 3,200 mm (H)
  • Weight approximately 38 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
