Zhongyang Sams Section Bending Machine

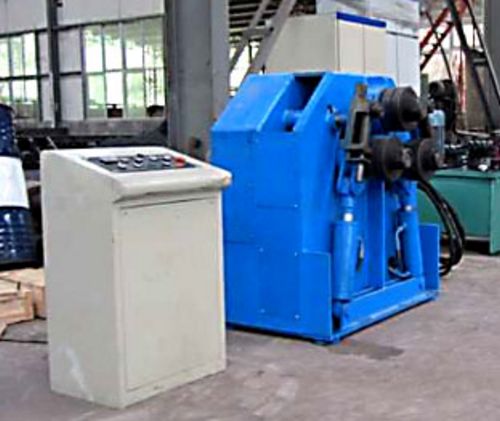

China W24S-320 Section Bending Machine

NHSYL010:

New, China W24S-320 Section Bending Machine

  • Max section modulus 320 cm³
  • Angle leg out: Max cross section180x180x20mm; Min bending diameter 3200mm
  • Angle leg in: Max cross section 170x170x20 mm; Min bending diameter 3200mm
  • Flat-along face: Max cross section 180x60 mm; Min bending diameter 2500mm
  • Flat-along edge: Max cross section 350x60 mm; Min bending diameter 2400mm
  • U-beam leg-out: U-beam model 36; Min bending diameter 3000mm
  • U-beam leg-in: U-beam model 30; Min bending diameter 4000mm
  • Solid bar: diameter 150mm; Min bending diameter 2500mm
  • Pipe (diameter x pipe thickness): 168x10 mm; Min bending diameter 4000mm
  • T-beam (width (height) x thickness): 170x14 mm; Min bending diameter 4000mm
  • I-beam: I beam model 35; Min bending diameter 4500mm
  • Square (width x thickness): 165x10 mm; Min bending diameter 3500mm
  • Rectangular (length x width x thickness): 180x90x8 mm; Min bending diameter 3500mm
  • Bending speed 5 m/min
  • Hydraulic pressure 20 Mpa
  • Main motor 30 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
