Zhongyang Sams Section Bending Machine


China W24S-100 Section Bending Machine

NHSYL005:

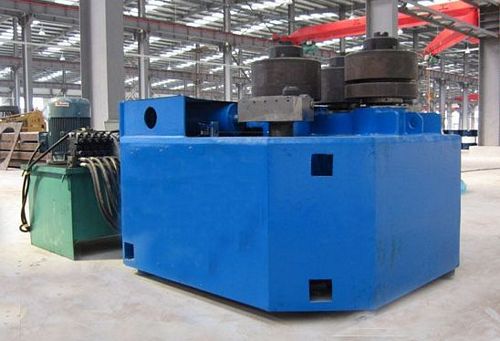

Used China W24S-100 Section Bending Machine

  • Max section modulus 100 cm³
  • Angle iron leg out: 125x125x14 mm (dia. 2200mm)
  • Angle iron leg in: 125x125x14 mm (dia. 2500mm)
  • Flat on face: 120x40 mm (dia. 1600mm)
  • Flat on edge: 250x40 mm (dia. 1500mm)
  • U-beam leg-out: U-beam model 25 (dia. 2500mm)
  • U-beam leg-in: U-beam model 25 (dia. 2800mm)
  • Solid bar: Bar diameter 90mm (dia. 1500mm)
  • Pipe (diameter x pipe thickness): 90x10 mm (dia. 1800mm)
  • T-beam (width (height) x thickness): 120x12 mm; Min bending diameter 2400mm
  • I-beam: I beam model 16; Min bending diameter 2200mm
  • Square (width x thickness): 100x10 mm; Min bending diameter 2000mm
  • Rectangular (length x width x thickness): 100x60x5 mm; Min bending diameter 2000mm
  • Bending speed 5 m/min
  • Hydraulic pressure 20 Mpa
  • Main motor 11 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
