Zhongyang Sams Section Bending Machine


China W24S-16 Section Bending Machine

NHSYL002:

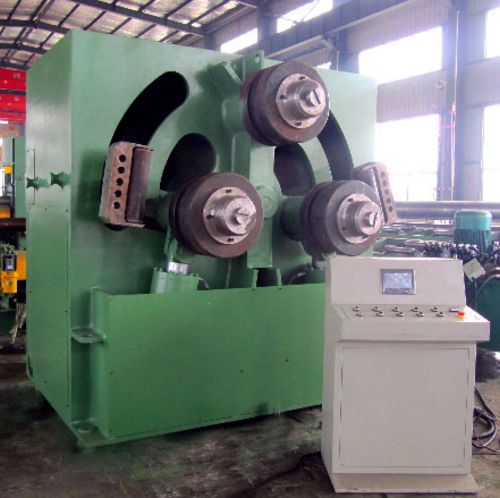

New, China W24S-16 Section Bending Machine

  • Max section modulus 16 cm³
  • Angle iron leg out: Max cross section 80x80x6 mm; Min bending diameter 1500mm
  • Angle iron leg in: Max cross section 70x70x6 mm; Min bending diameter 1500mm
  • Flat-along face: Max cross section 75x16 mm; Min bending diameter 800mm
  • Flat-along edge: Max cross section 150x25 mm; Min bending diameter 1200mm
  • U-beam leg-out: U-beam model 12; Min bending diameter 1700mm
  • U-beam leg-in: U-beam model 12; Min bending diameter 1500mm
  • Solid bar: diameter 50mm; Min bending diameter 800mm
  • Pipe (diameter x pipe thickness): 76x4 mm; Min bending diameter 800mm
  • T-beam (width (height) x thickness): 70x6 mm; Min bending diameter 1500mm
  • I-beam: I beam model 8; Min bending diameter 1800mm
  • Square (width x thickness): 60x4 mm; Min bending diameter 900mm
  • Rectangular (length x width x thickness): 50x30x4 mm; Min bending diameter 1200mm
  • Bending speed 5 m/min
  • Hydraulic pressure 20 Mpa
  • Main motor 7.5 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
