Zhongyang Sams Section Bending Machine


China W24S-6 Section Bending Machine

NHSYL001:

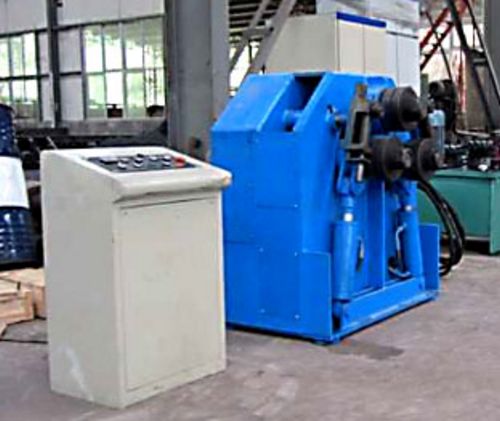

New, China W24S-6 Section Bending Machine

  • Max section modulus 6 cm³
  • Angle leg out: Max cross section 50x50x5 mm; Min bending diameter 500mm
  • Angle leg in: Max cross section 50x50x5 mm; Min bending diameter 500mm
  • Flat-along face: Max cross section 50x10 mm; Min bending diameter 500mm
  • Flat-along edge: Max cross section 100x15 mm; Min bending diameter 1200mm
  • U-beam leg-out: U-beam model 8; Min bending diameter 1000mm
  • U-beam leg-in: U-beam model 8; Min bending diameter 1200mm
  • Solid bar: diameter 25mm; Min bending diameter 600mm
  • Pipe (diameter x pipe thickness): 40x4 mm; Min bending diameter 600mm
  • T-beam (width (height) x thickness): 35x5 mm; Min bending diameter 600mm
  • I-beam: I beam model 6; Min bending diameter 1200mm
  • Square (width x thickness): 45x3 mm; Min bending diameter 750mm
  • Rectangular (length x width x thickness): 20x30x2 mm; Min bending diameter 1000mm
  • Bending speed 5 m/min
  • Hydraulic pressure 20 Mpa
  • Main motor 2.2 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
