Sahinler HPK 80 Hydraulic Section & Pipe Bending Machine

NHSSL007:

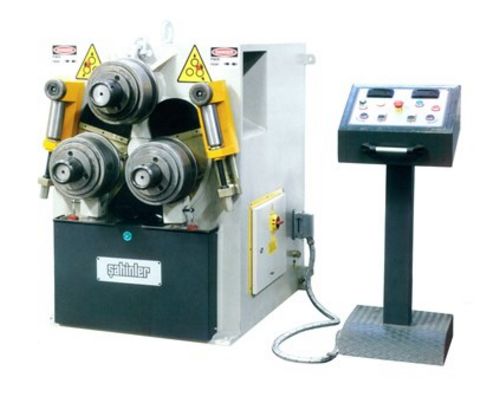

New, Sahinler HPK 80 Hydraulic Section & Pipe Bending Machine

  • Angle leg-out (max section): 80x80x8mm; Min bending dia 800mm
  • Angle leg-out (min section): 30x30x3mm; Min bending dia 450mm
  • Angle leg-in (max section): 70x70x7mm; Min bending dia 700mm
  • Angle leg-in (min section): 30x30x3mm; Min bending dia 450mm
  • Flat on-edge: 100x20mm; Min bending dia 2000mm
  • Flat on-edge: 80x20mm; Min bending dia 800mm
  • Flat on-edge: 30x10mm; Min bending dia 300mm
  • Flat on-face (max section): 125x25mm; Min bending dia 600mm
  • Flat on-face (min section): 60x5mm; Min bending dia 300mm
  • Solid square bar (max section): 45x45mm; Min bending dia 500mm
  • Solid square bar (min section): 15x15mm; Min bending dia 380mm
  • Solid round bar (max section): Ø50mm; Min bending dia 500mm
  • Solid round bar (min section): Ø15mm; Min bending dia 380mm
  • Pipe (max section): 3"x5.48; Min bending dia 800mm
  • Pipe (min section): 1/2"x2.77; Min bending dia 380mm
  • Pipe (max section): Ø100x2.5; Min bending dia 1200mm
  • Pipe (min section): Ø15x1; Min bending dia 380mm
  • Square pipe (max section): 80x25x3mm; Min bending dia 800mm
  • Square pipe (min section): 25x15x2mm; Min bending dia 350mm
  • T leg-out (max section): 80x9mm; Min bending dia 800mm
  • T leg-out (min section): 30x4mm; Min bending dia 300mm
  • T leg-in (max section): 70x8mm; Min bending dia 800mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
