Zhongyang Sams Section Bending Machine

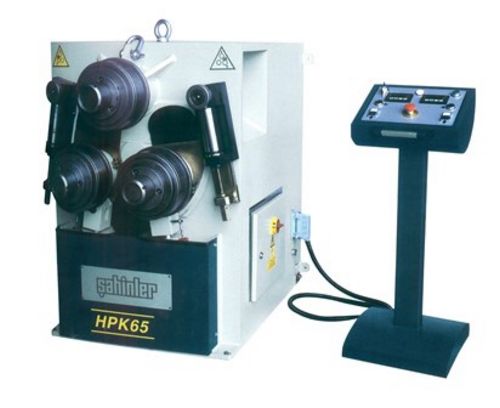

Sahinler HPK 65 Hydraulic Section & Pipe Bending Machine

NHSSL006:

New, Sahinler HPK 65 Hydraulic Section & Pipe Bending Machine

  • Angle leg-out (max section): 60x60x6mm; Min bending dia 650mm
  • Angle leg-out (min section): 30x30x4mm; Min bending dia 350mm
  • Angle leg-in (max section): 50x50x5mm; Min bending dia 550mm
  • Angle leg-in (min section): 30x30x4mm; Min bending dia 350mm
  • Flat on-edge(max section): 60x10mmmm; Min bending dia 500mm
  • Flat on-edge (min section): 20x5mm; Min bending dia 250mm
  • Flat on-face (max section): 80x20mm; Min bending dia 500mm
  • Flat on-face (min section): 50x5mm; Min bending dia 250mm
  • Solid square bar (max section): 32x32mm; Min bending dia 400mm
  • Solid square bar (min section): 12x12mm; Min bending dia 250mm
  • Solid round bar (max section): Ø35mm; Min bending dia 350mm
  • Solid round bar (min section): Ø10mm; Min bending dia 250mm
  • Pipe (max section): 2"x3.91; Min bending dia 400mm
  • Pipe (min section): 1/2"x2.77; Min bending dia 200mm
  • Pipe (max section): Ø60x2; Min bending dia 600mm
  • Pipe (min section): Ø15x1.5; Min bending dia 200mm
  • Square pipe (max section): 50x25x3mm; Min bending dia 450mm
  • Square pipe (min section): 20x15x2mm; Min bending dia 250mm
  • T leg-out (max section): 60x70mm; Min bending dia 500mm
  • T leg-out (min section): 20x3mm; Min bending dia 250mm
  • T leg-in (max section): 50x6mm; Min bending dia 500mm
  • T leg-in (min section): 20x3mm; Min bending dia 250mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
