Zhongyang Sams Section Bending Machine

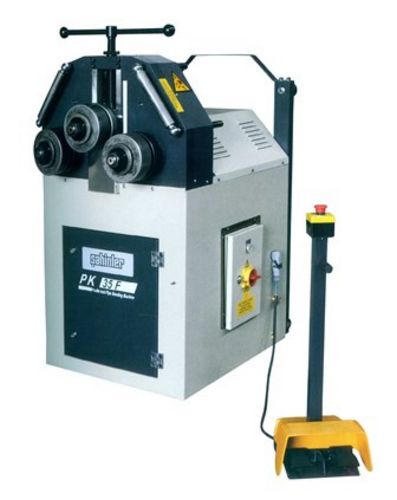

Sahinler PK35-F Hydraulic Section & Pipe Bending Machine


New, Sahinler PK35-F Hydraulic Section & Pipe Bending Machine

  • Angle leg-out (max section): 50x50x5mm; Min bending dia 1000mm
  • Angle leg-out (min section): 40x40x5mm; Min bending dia 600mm
  • Angle leg-in (max section): 50x50x6mm; Min bending dia 1000mm
  • Angle leg-in (min section): 30x30x3mm; Min bending dia 500mm
  • Flat on-edge(max section): 60x10mmmm; Min bending dia 500mm
  • Flat on-edge (min section): 40x10mm; Min bending dia 400mm
  • Flat on-face (max section): 100x15mm; Min bending dia 450mm
  • Flat on-face (min section): 60x10mm; Min bending dia 350mm
  • Solid square bar (max section): 35x35mm; Min bending dia 900mm
  • Solid square bar (min section): 20x20mm; Min bending dia 300mm
  • Solid round bar (max section): Ø35mm; Min bending dia 600mm
  • Solid round bar (min section): Ø30mm; Min bending dia 400mm
  • Pipe (max section): 2"x2.9; Min bending dia 1000mm
  • Pipe (min section): 1"x2.3; Min bending dia 350mm
  • Pipe (max section): Ø70x2; Min bending dia 1000mm
  • Pipe (min section): Ø30x2; Min bending dia 500mm
  • Square pipe (max section): 70x30x2mm; Min bending dia 1200mm
  • Square pipe (min section): 50x40x3mm; Min bending dia 1200mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
