Sahinler HPK 160 Hydraulic Section & Pipe Bending Machine

NHSSL002:

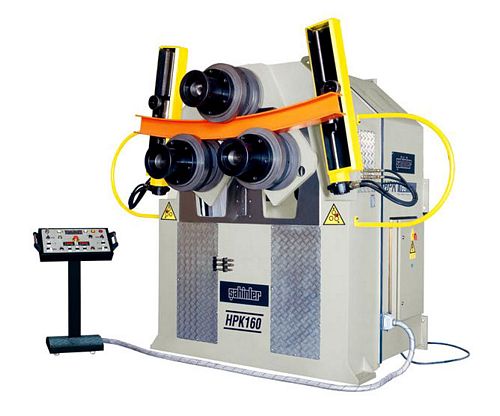

New, Sahinler HPK 160 Hydraulic Section & Pipe Bending Machine

  • Angle leg-out (max section):150x150x18mm; Min bending dia 2200mm
  • Angle leg-out (min section): 50x50x5mm; Min bending dia 800mm
  • Angle leg-in (max section): 150x150x15mm; Min bending dia 3000mm
  • Angle leg-in (min section): 50x50x5mm; Min bending dia 800mm
  • Flat on-edge (max section): 150x40mm; Min bending dia 2500mm
  • Flat on-edge (min section): 50x10mm; Min bending dia 700mm
  • Flat on-face (max section): 280x50mm; Min bending dia 1500mm
  • Flat on-face (min section): 120x15mm; Min bending dia 700mm
  • Solid square bar (max section): 90x90mm; Min bending dia 1500mm
  • Solid square bar (min section): 30x30mm; Min bending dia 700mm
  • Solid round bar(max section): Ø90mm; Min bending dia 1800mm
  • Solid round bar (min section): Ø30mm; Min bending dia 700mm
  • Pipe (max section) Ø6" x 7.11; Min bending dia 2500mm
  • Pipe (min section) Ø1"x3.78; Min bending dia 700mm
  • Pipe (max section): Ø180x4mm; Min bending dia 4000mm
  • Pipe (min section): Ø60x2mm; Min bending dia 700mm
  • Square pipe (max section): 150x50x5mm; Min bending dia 3000mm
  • Square pipe (min section): 60x30x3mm; Min bending dia 700mm
  • T leg-out 150x15mm; Min bending dia 2000mm
  • T leg-in 130x15mm; Min bending dia 2500mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
