Zhongyang Sams Section Bending Machine

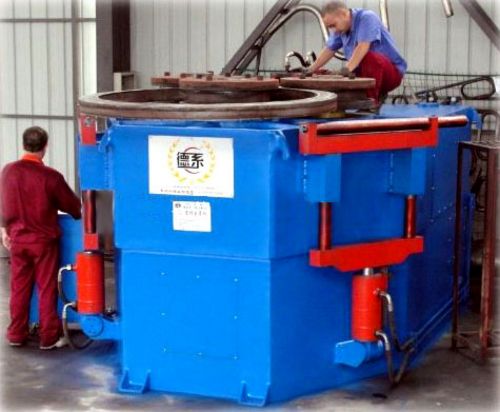

China W24YPC-180 Section Bender

NHSDX005:

New, China W24YPC-180 Section Bender

  • Angle iron leg-in: Section Max: 140x16mm, Min 40x5mm
  • Bending diameter 1000-2400mm
  • Angle iron leg-out: Section Max 140x16mm, Min 50x5mm
  • Bending diameter 800-2200mm
  • Channel steel leg-out: Max section 30mm, Min bending diameter 1200mm
  • Channe steel leg-in: Max section 30mm, Min bending diameter 1700mm
  • Flat steel on-flat: Max section 280x50mm, Min bending diameter 1300mm
  • Flat steel on-edge: Max section 150x40mm, Min bending diameter 1500mm
  • Roll bending: Max section 168x10mm, Min bending diameter 2000mm
  • Max section modulus 180 cm³
  • Bending speed 5 m/min
  • Section yield strength 250 Mpa
  • Hydraulic system working pressure ≤16 Mpa
  • Oil pump motor 22 kw
  • Oil pump power 21 kw
  • Overall Dimensions: 2,800 mm (L) x 2,600 mm (W) x 2,200 mm (H)
  • Weight approximately 18 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section roller machine, section rollers, section rolling machine, section rolls, ring roller, ring rolling machine, angle rolls, angle roller, angle rolling machine, angle bender, angle rolling mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
