Zhongyang Sams Plate Bending Rolls

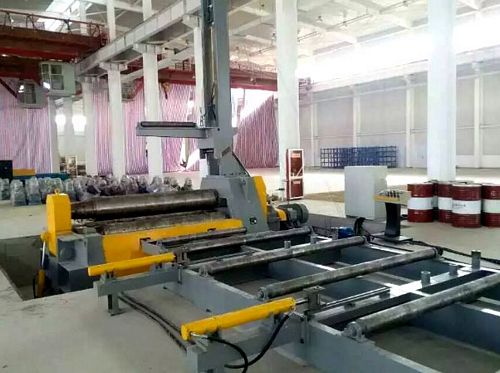

China W12NC-40x2500 Plate Bending Roll


New, China W12NC-40x2500 Plate Bending Roll

  • Rolling thickness 40mm
  • Prebending thickness 32mm
  • Effective length of rollers 2600mm
  • Plate width 2500mm
  • Min rolling diameter at full-loading 1100mm
  • Yield strength 235 Mpa
  • Top roll diameter 520mm
  • Bottom roll diameter 480mm
  • Side roll diameter 420mm
  • Working roll: material 42CrMo, hardness HB220-260
  • Lifting synchronous precise/accuracy ±0.2 mm
  • Rolling speed: about 3.5 m/min
  • Descending/ascending speed of bottom roll 160 mm/min
  • Descending/ascending speed of side roll 300 mm/min
  • Main motor 18.5 x 3 kw
  • Pressure 22 Mpa
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
