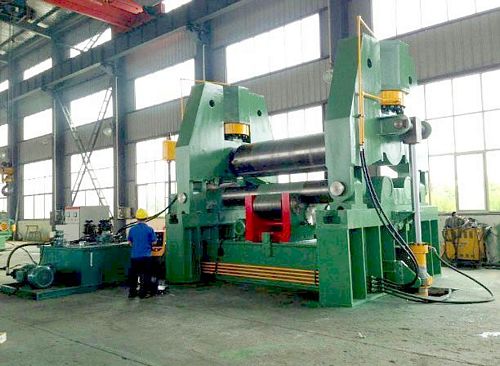

China W11SNC-100x2000 Plate Bending Roll

NHRYL251:

New, China W11SNC-100x2000 Plate Bending Roll

  • Rolling Thickness 100 x 2000mm (At Dia 2000mm)
  • Prebending Thickness 80 x 2000mm (At Dia 2000mm)
  • Top Roll Pressure 900 Ton
  • Plate Yield Limit 245 MPa
  • Plate Width 2000mm
  • Top Roll Diameter 680mm
  • Bottom Rolls Diameter 420mm
  • Distance Between Bottom Rolls Center-to-Center 780mm
  • Diameter of Supporting Roller 420mm
  • Rolling Speed 3.5 m/min
  • Top Roll Descending Speed 120 mm/min
  • Top Roll Ascending Speed 200 mm/min
  • Top Roll Horizontal Moving Speed 100 mm/min
  • Top Roll Synchronous Precise/Accuracy: ± ≤0.20 mm
  • Top Roll Moving Precise/Accuracy: ± ≤0.20 mm
  • Top Roll Re-Position Precise/Accuracy: ± ≤0.20 mm
  • Main Motor 75 kW
  • Hydraulic Motor 30 kW
  • Motor for Shifting 15 kW
  • Max Working Pressure 19.5 MPa
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
