Zhongyang Sams Plate Bending Rolls

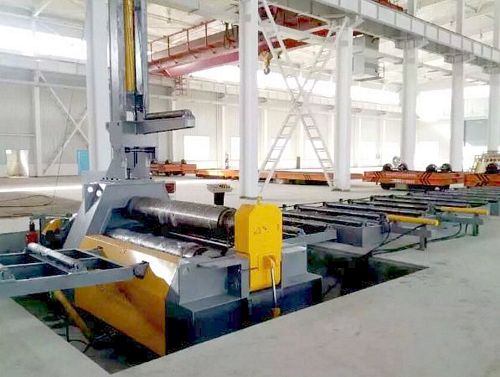

China W12NC-12x3000 Four Roller Plate Bending Roll


New, China W12NC-12x3000 Four Roller Plate Bending Roll

  • Rolling Thickness 12mm
  • Prebending Thickness 10mm
  • Effective length of rollers 3050mm
  • Plate width 3000mm
  • Min rolling diameter at full-loading 900mm
  • Yield strength 235 MPa
  • Top roll diameter 360mm
  • Bottom roll diameter 340mm
  • Side roll diameter 260mm
  • Working roll: material 42CrMo, hardness HB240-286
  • Lifting synchronous precise/accuracy ±0.2 mm
  • Rolling speed: about 3.5 m/min
  • Descending/ascending speed of bottom roll 160 mm/min
  • Descending/ascending speed of side roll 300 mm/min
  • Main motor 22 kW
  • Pressure 20 Mpa
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
