Zhongyang Sams Plate Bending Rolls

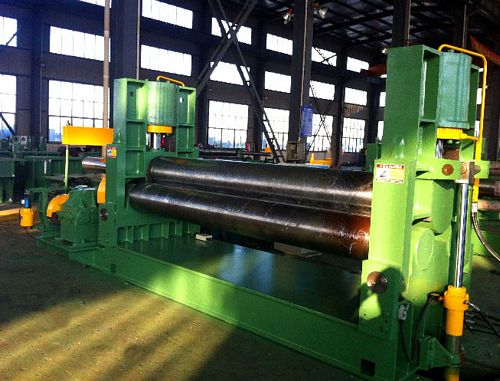

China W11Y-80x4500 Plate Bending Roll


New, China W11Y-80x4500 Plate Bending Roll

  • Rolling thickness 80 x 4500mm  (at diameter 3000mm)
  • Plate yield limit 245 Mpa
  • Top roll diameter 850mm
  • Bottom roll diameter 480mm
  • Distance between bottom rolls center-to-center 930mm
  • Rolling speed 3.5 m/min
  • Top roll synchronous accuracy ±≤0.20mm
  • Top roll moving accuracy ±≤0.20mm
  • Top roll re-position accuracy ±≤0.20mm
  • Main motor 90 kw
  • Hydraulic motor 45 kw
  • Hydraulic system working pressure 25 Mpa
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
