China W11S-80x4500 Plate Bending Roll

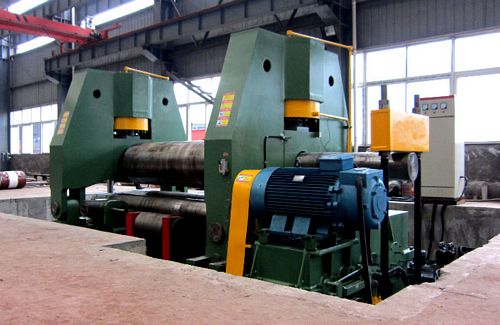

New, China W11S-80x4500 Plate Bending Roll

  • Rolling thickness 80mm (at diameter 3000mm)
  • Prebending thickness 70mm (at diameter 3000mm)
  • Width of bending plate 4500mm
  • Top roll pressure 1350 ton
  • Plate yield limit 245 Mpa
  • Top roll diameter 860mm
  • Bottom roll diameter 480mm
  • Distance between bottom rolls center-to-center 920mm
  • Diameter of supporting roller 460mm
  • Rolling speed 3.5 m/min
  • Top roll descending speed 120 mm/min
  • Top roll ascending speed 200 mm/min
  • Top roll horizontal moving speed 100 mm/min
  • Top roll synchronous accuracy ±≤0.20mm
  • Top roll moving accuracy ±≤0.20mm
  • Top roll re-position accuracy ±≤0.20mm
  • Main motor 90 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
