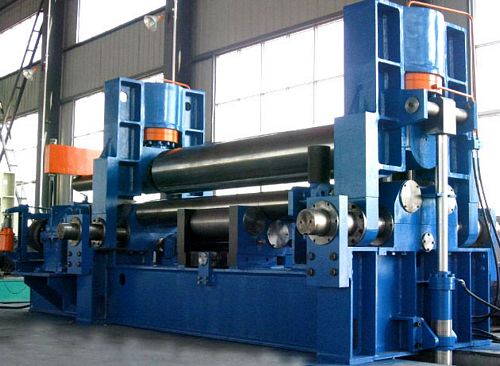

China W11S-60x4500 Double Pinch Rolling Machine

NHRYL237:

New, China W11S-60x4500 Double Pinch Rolling Machine

  • Rolling thickness 60 x 4500mm (at dia. 3000mm)
  • Prebending thickness 50 x 4500mm (at dia. 3000mm)
  • Top roll diameter 740mm
  • Bottom roll diameter 420mm
  • Top roll pressure 780 ton
  • Plate yield limit 245 Mpa
  • Distance between bottom rolls center-to-center 780mm
  • Diameter of supporting roll 420mm
  • Rolling speed 3.5 m/min
  • Top roll speed: descending 120 mm/min; ascending 200 mm/min
  • Top roll horizontal moving speed 100 mm/min
  • Top roll synchronous accuracy ±≤0.20mm
  • Top roll moving accuracy ±≤0.20mm
  • Top roll re-position accuracy ±≤0.20mm
  • Main motor 75 kw
  • Hydraulic motor 30 kw
  • Motor for horizontal moving 15 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
