Zhongyang Sams Plate Bending Rolls

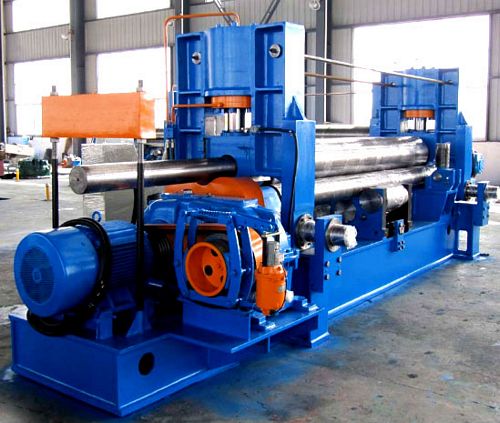

China W11S-20x2600 Plate Bending Roll


New, China W11S-20x2600 Plate Bending Roll

  • Rolling thickness 20 x 2600mm (at dia 800mm)
  • Prebending thickness 16 x 2600mm (at dia 800mm)
  • Top roll pressure 130 ton
  • Plate width 2600mm
  • Length of working rolls 2700mm
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Top roll diameter 330mm
  • Bottom roll diameter 180mm
  • Distance between bottom rolls center-to-center 300mm
  • Rolling speed: about 3.5 m/min
  • No. of supporting roller: 1 group, 4 rollers per group
  • Top roll pressure speed: about 120 mm/min
  • Main motor 18.5 kw
  • Hydraulic motor 5.5 kw
  • Motor for shifting 2.2 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
