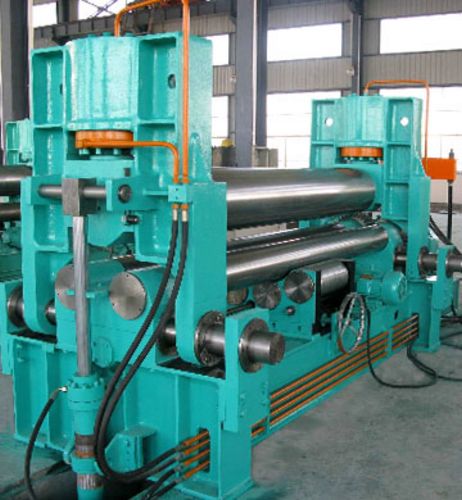

New, China W11S-16x3000 Plate Bending Roll
- Rolling thickness 16 x 3000mm (at dia 800mm)
- Prebending thickness 12 x 3000mm (at dia 800mm)
- Type: Top roll NC controlled (Economic NC)
- Top roll pressure 350 T
- Length of working rolls 3100mm
- Plate width 3000mm
- Top roll diameter 410mm
- Bottom roll diameter 235mm
- Width of straight ends at full loading capacity ≤2.5 x plate thickness
- Distance between bottom rolls center-to-center 380mm
- Rolling speed: about 3.5 m/min
- No. of supporting roller: 1 group, 4 rollers per group
- Top roll pressure speed: about 130 mm/min
- Main motor 18.5 kw
- Hydraulic motor 5.5 kw
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
