China W12NC-25X3000 Four Roller Plate Bending Roll

NHRYL223:

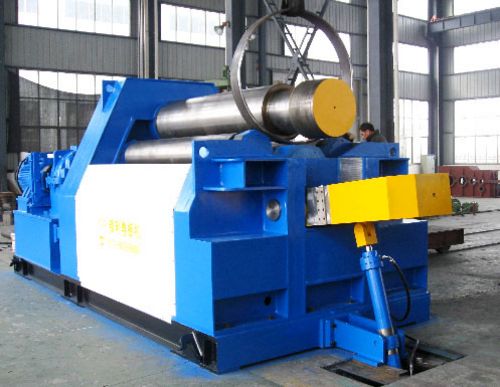

New, China W12NC-25X3000 Four Roller Plate Bending Roll

  • Rolling thickness 25mm
  • Prebending thickness 20mm
  • Plate width 3000mm
  • Min rolling diameter at full-loading 600mm
  • Yield strength 235 Mpa
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Top roll diameter 480mm
  • Bottom roll diameter 440mm
  • Side roll diameter 340mm
  • Working roll: material 42CrMo, hardness HB240-286
  • Length of working rolls 3050mm
  • Rolling speed: about 4 m/min
  • Descending/ascending speed of bottom roll 160 mm/min
  • Descending/ascending speed of side roll 280 mm/min
  • Pressure 25 Mpa
  • Main motor 37 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
