China W11S-120x3000 Plate Bending Roll

NHRYL219:

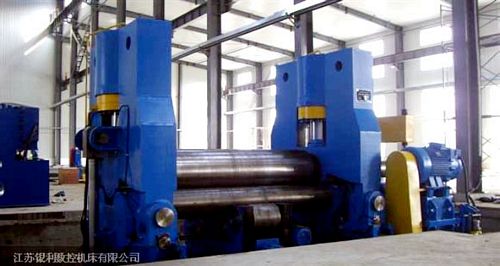

New, China W11S-120x3000 Plate Bending Roll

  • Rolling thickness 120 x 3000mm (at dia 3500mm)
  • Prebending thickness 100 x 3000mm (at dia 3500mm)
  • Type: Top roll NC controlled (Economic NC)
  • Top roll pressure 1600 ton
  • Plate width 3000mm
  • Length of working rolls 3100mm
  • Top roll diameter 920mm
  • Bottom rolls diameter 560mm
  • Distance between bottom rolls center-to-center 1080mm
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • No. of supporting roller: 1 group/ 4 rollers per group
  • Top roll pressure speed: about 120 mm/min
  • Coiling speed ≈ 4 m/min
  • Capacity <=235 Mpa
  • Main motor 110 Kw
  • Hydraulic motor 55 Kw
  • Motor for shifting 30 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
