Sunshine Innovation Sams Plate Bending Rolls

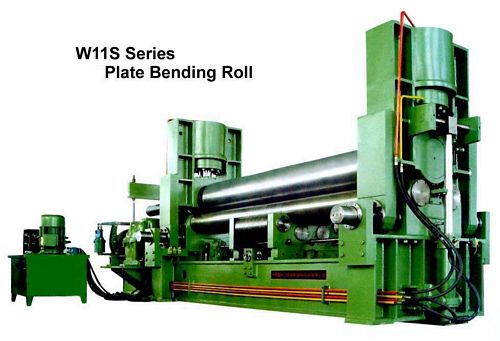

China W11S-40x3200 Plate Bending Roll

NHRYL213:

New, China W11S-40x3200 Plate Bending Roll

  • Rolling thickness 40mm x 3200mm (at 1600 dia)
  • Prebending thickness 35mm x 3200mm (at 1600 dia)
  • Top roll pressure 430 T
  • Top roll diameter 550mm
  • Bottom rolls diameter 290mm
  • Plate width 3200mm
  • Length of working rolls 3300mm
  • Distance between bottom rolls center-to-center 500mm
  • Rolling speed about 3.5 m/min
  • No. of supporting roller: 1 group, 4 rollers per group
  • Top roll pressure speed 120 mm/min
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Main motor 55 kW
  • Hydraulic motor 22 kW
  • Motor for shifting 7.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
