Sunshine Innovation Sams Plate Bending Rolls

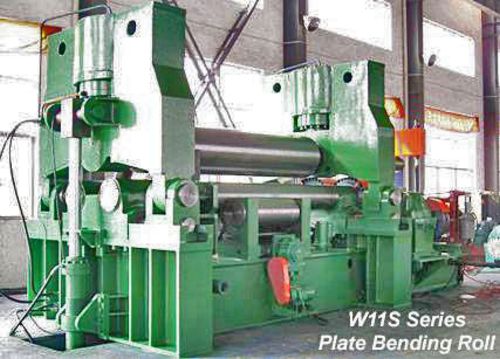

China W11S-60x3200 Plate Bending Roll

NHRYL202:

New, China W11S-60x3200 Plate Bending Roll

  • Rolling thickness 60mm x 3200mm (at 1100 dia)
  • Prebending thickness 50mm x 3200mm (at 1100 dia)
  • Top roll pressure 690 tons
  • Top roll diameter 660mm
  • Bottom rolls diameter 380mm
  • Distance between bottom rolls center-to-center 700mm
  • Plate width 3200mm
  • Length of working rolls 3300mm
  • Coiling speed ≈3.5 m/min
  • Capacity <=245 Mpa
  • Upper roller pressure speed: about 120mm/min
  • Supporting rollers: 4 rollers/group, 1 group
  • Main motor 75 kW
  • Hydraulic motor 30 kW
  • Motor for shifting 15 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
