Zhongyang Sams Plate Bending Rolls

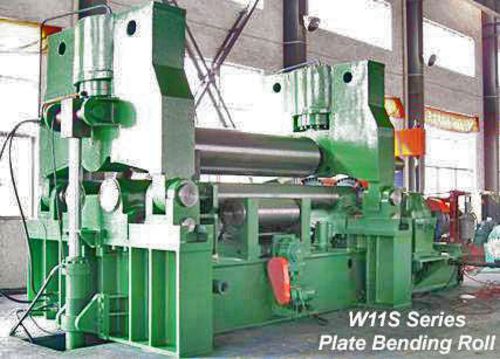

China W11S-80x3200 Plate Bending Roll


New, China W11S-80x3200 Plate Bending Roll

  • Rolling thickness 80mm x 3200mm (at 3000 dia)
  • Prebending thickness 70mm x 3200mm (at 3000 dia)
  • Top roll pressure 1050 tons
  • Top roll diameter 780mm
  • Bottom rolls diameter 460mm
  • Distance between bottom rolls center-to-center 880mm
  • Plate width 3000mm
  • Length of working rolls 3100mm
  • Coiling speed ≈ 3.5m/min
  • Capacity <=245 Mpa
  • Upper roller pressure speed: about 120 mm/min
  • Supporting rollers: 4 rollers/group, 1 group
  • Main motor 90 kW
  • Hydraulic motor 37 kW
  • Motor for shifting 18.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
