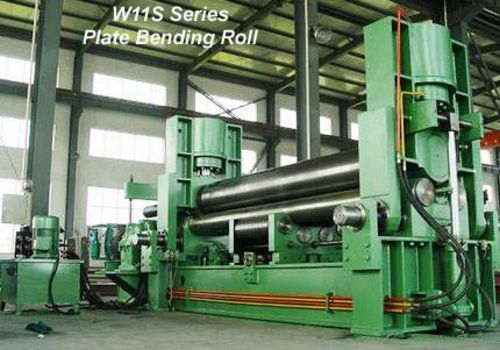

China W11S-30x2000 Plate Bending Roll

NHRYL195:

New, China W11S-30x2000 Plate Bending Roll

  • Rolling thickness 30mm x 2000mm (at 1000 dia)
  • Prebending thickness 25mm x 2000mm (at 1000 dia)
  • Type: Top roll NC controlled (Economic NC)
  • Top roll pressure 190 tons
  • Top roll diameter 380mm
  • Bottom rolls diameter 220mm
  • Distance between bottom rolls center-to-center 360mm
  • Plate width 2000mm
  • Length of working rolls 2100mm
  • No. of supporting roller: 1 group, 4 rollers per group
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Coiling speed ~ 3.5 m/min
  • Top roll pressure speed ~130 mm/min
  • Capacity <=245 Mpa
  • Main motor 22 kW
  • Hydraulic motor 7.5 kW
  • Moving motor 4 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
