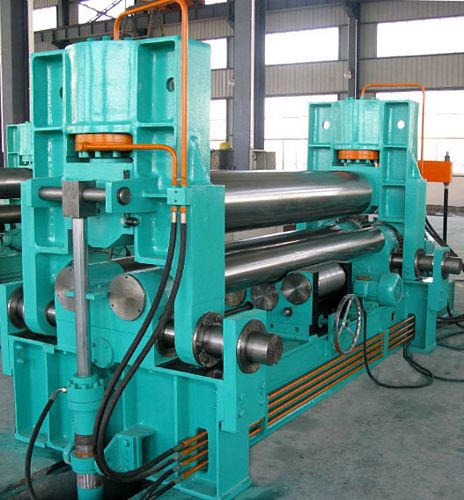

China W11S-25x3200 Plate Bending Roll


New, China W11S-25x3200 Plate Bending Roll

  • Rolling Thickness 25mm x 3200mm (at dia 1000mm )
  • Prebending Thickness 20mm x 3200mm (at dia 1000mm)
  • Top Roll Pressure 230 tons
  • Top Roll Diameter 410mm
  • Bottom Rolls Diameter 235mm
  • Distance Between Bottom Rolls Center-to-Center 380mm
  • Max. Plate Width 3200m
  • Length of Working Rolls 3300mm
  • Coiling Speed ≈3.5 m/min
  • Width of Straight Ends at Full Loading Capacity ≤2.5 x Plate Thickness
  • Top Roll Pressure Speed ≈130 mm/min
  • Supporting Rollers: 1 group, 4 rollers/group
  • Main Motor 30 Kw
  • Hydraulic Motor 11 Kw
  • Motor For Shifting 5.5 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
