Zhongyang Sams Plate Bending Rolls

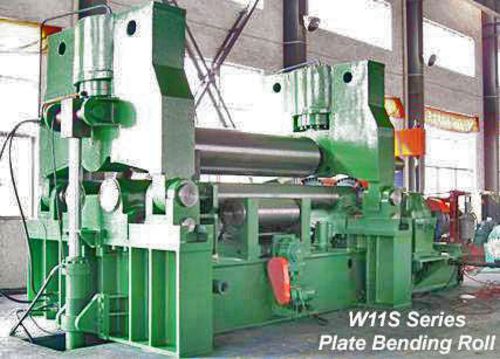

China W11S-65x3000 Plate Bending Roll

NHRYL193:

New, China W11S-65x3000 Plate Bending Roll

  • Rolling Thickness 65mm x 3000mm (at 2600 dia)
  • Prebending Thickness 55mm x 3000mm (at 2600 dia)
  • Top roll pressure 750 tons
  • Top roll diameter 670mm
  • Bottom rolls diameter 380mm
  • Plate width 3000mm
  • Distance between bottom rolls center-to-center 700mm
  • Length of working rolls 3100mm
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Coiling speed ≈ 3.5 m/min
  • Top roller pressure speed ≈ 120 mm/min
  • Supporting rollers: 1 group, 4 rollers/group
  • Main motor 75 kW
  • Hydraulic motor 30 kW
  • Motor for shifting 15 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
