Zhongyang Sams Plate Bending Rolls

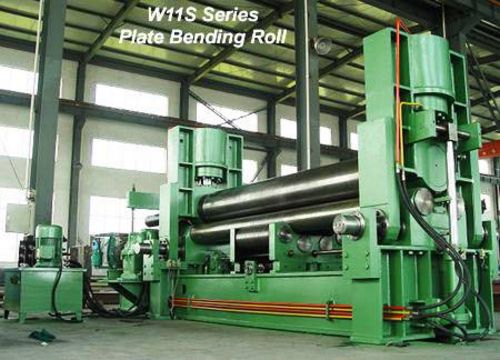

China W11s-30x2500 Roll Plate Bending Machine

NHRYL189:

New, China W11s-30x2500 Roll Bending Machine

  • Rolling Capacity 30 mm
  • Prebending Capacity 25 mm
  • Max Width of Coiled Plate 2500 mm
  • Upper Roller Force 230 Tons
  • Top Roll Diameter 410 mm
  • Diameter of the Lower Roller 235 mm
  • Central Distance Between Bottom Shafts 380 mm
  • Length of Working Rolls 2600 mm
  • Coiling Speed Approx. 3.5 m/min
  • Capacity <=245 Mpa
  • Drive Coil Power 30 kW
  • Hydraulic System Motor 11 kW
  • Horizontal Movement Motor 5.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
