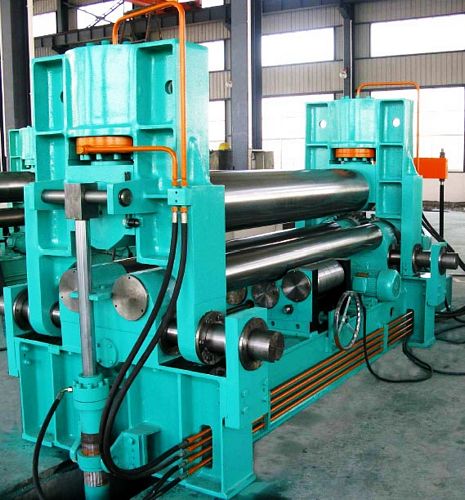

China W11S-25x6000 Plate Bending Roll


New, China W11S-25x6000 Plate Bending Roll

  • Rolling thickness 25mm x 6000mm (at 1500 dia)
  • Prebending thickness 16mm x 6000mm (at 1500 dia)
  • Top roll pressure 500 Tons
  • Top roll diameter 640mm
  • Bottom rolls diameter 340mm
  • Distance between bottom rolls center-to-center 610mm
  • Plate width 6000mm
  • Length of working rolls 6100mm
  • Capacity ≤245 Mpa
  • Rolling speed 3.5 m/min
  • No. of supporting roller: 1 group, 4 rollers per group
  • Main motor 45 kW
  • Hydraulic motor 22 kW
  • Motor for shifting 5.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
