Sunshine Innovation Sams Plate Bending Rolls

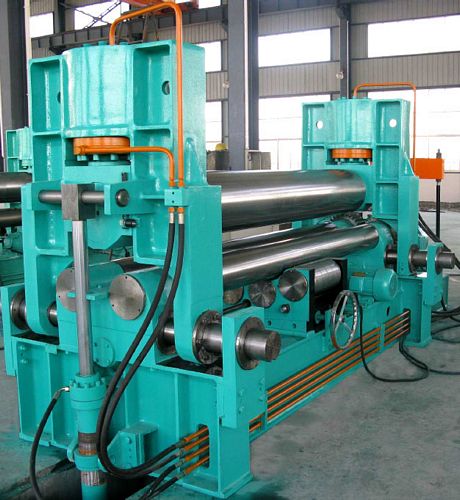

China W11S-25x3000 Plate Bending Roll

NHRYL186:

New, China W11S-25x3000 Plate Bending Roll

  • Rolling thickness 25mm x 3000mm (at dia. 1000mm)
  • Prebending thickness 20mm x 3000mm (at dia. 1000mm)
  • Type: Top roller NC controlled (economic NC)
  • Top roll pressure 230 tons
  • Top roll diameter 410mm
  • Bottom rolls diameter 235mm
  • Distance between bottom rolls center-to-center 380mm
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Plate width 3000mm
  • Length of working rolls 3100mm
  • Coiling speed: about 3.5 m/min
  • No. of supporting roller: 1 group, 4 rollers per group
  • Top roll pressure speed: about 130 mm/min
  • Main motor 30 kW
  • Hydraulic motor 11 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
