China W11S-12x2500 Roll Plate Bending Machine

NHRYL185:

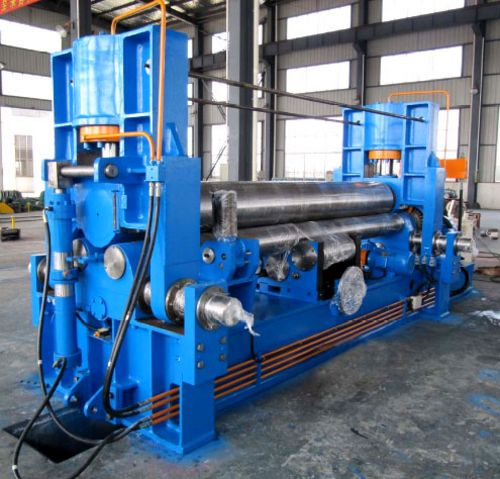

New, China W11S-12x2500 Roll Plate Bending Machine

  • Rolling thickness 12mm x 2500mm (at dia 650mm)
  • Prebending thickness 10mm x 2500mm (at dia 650mm)
  • Top roll pressure 75 tons
  • Top roll diameter 270mm
  • Bottom rolls diameter 150mm
  • Plate width 2500mm
  • Length of working rolls 2600mm
  • Distance between bottom rolls center-to-center 245mm
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Coiling speed ≈ 3.5 m/min
  • No. of supporting roller: 1 group, 4 rollers per group
  • Top roll pressure speed ≈120 mm/min
  • Main motor 7.5 kW
  • Hydraulic motor 4 kW
  • Moving motor 1.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
