Plate Bending Rolls

NHRYL181:

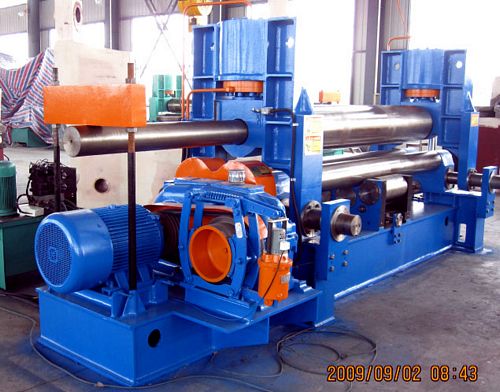

New, China W11S-6x2500 Plate Bending Roll

Rolling Thickness 6mm x 2500mm (at 600 dia)
Prebending Thickness 4mm x 2500mm (at 600 dia)
Top roll pressure 37 tons
Top roll diameter 210mm
Bottom rolls diameter 125mm
Distance between bottom rolls center-to-center 160mm
Plate width 2500mm
Length of working rolls 2600mm
Top roll pressure speed ≈ 120 mm/min
Coiling speed ≈ 3.5 m/min
Width of straight ends at full loading capacity ≤2.5 x plate thickness
No. of supporting roller: 1 group, 4 rollers per group
Main motor 5.5 kW
Hydraulic motor 2.2 kW
Motor for shifting 0.75 kW

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
