China W11S-80x4000 Plate Bending Roll

NHRYL174:

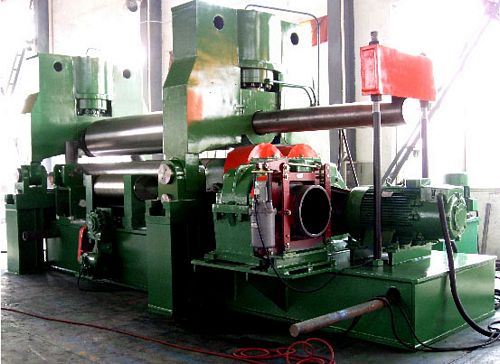

New, China W11S-80x4000 Plate Bending Roll

  • Rolling thickness 80mm x 4000mm (at dia 2500mm)
  • Prebending thickness 70mm x 4000mm (at dia 2500mm)
  • Type: Top roll NC controlled (Economic NC)
  • Top roll pressure 1250 ton
  • Plate width 4000 mm
  • Length of working rolls 4100mm
  • Top oll diameter 825 mm
  • Bottom rolls diameter 460 mm
  • Distance between bottom rolls center-to-center 880mm
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Diameter of supporting of roller 520mm
  • No. of supporting roller: 1 group/ 4 rollers per group
  • Top roll pressure speed: about 130 mm/min
  • Coiling speed ≈ 3.5 m/min
  • Capacity <=235 Mpa
  • Main motor 90 Kw
  • Hydraulic motor 37 Kw
  • Motor for shifting 18.5 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
