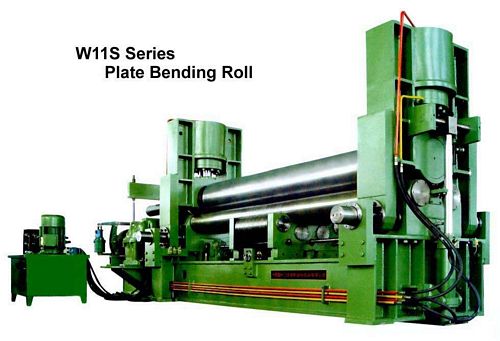

New, China W11S-100x3000 Plate Bending Roll
- Rolling Thickness 100mm x 3000mm (at 4500 dia.)
- Prebending Thickness 90mm x 3000mm (at 4500 dia.)
- Top Roll Pressure 1350 Ton
- Plate Width 3000 mm
- Top Roll Diameter 860 mm
- Bottom Rolls Diameter 520 mm
- Distance between bottom rolls center-to-center 1000mm
- Length of working rolls 3100mm
- Coiling speed ≈ 3 m/min
- Capacity <=245 Mpa
- Upper roller pressure speed: about 120 mm/min
- Supporting rollers: 4 rollers/group, 1 group
- Main Motor 110 kW
- Hydraulic Motor 45 kW
- Motor for Shifting 22 kW
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
