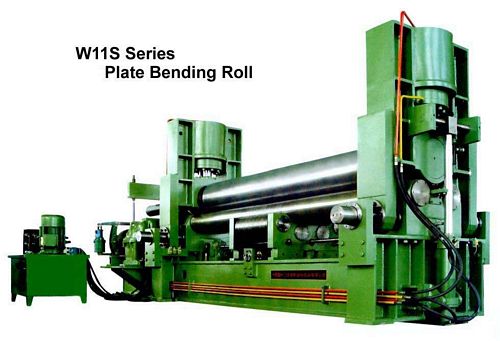

China W11S-55x6000 Plate Bending Roll


New, China W11S-55x6000 Plate Bending Roll

  • Rolling Thickness 55 x 6000mm (at dia 2500mm)
  • Prebending Thickness 40 x 6000mm (at dia 2500mm)
  • Type: Top roll NC controlled (Economic NC)
  • Top roll pressure 930 ton
  • Plate width 6000mm
  • Length of working rolls 6100mm
  • Top roll diameter 860mm
  • Bottom rolls diameter 460mm
  • Distance between bottom rolls center-to-center 880mm
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • No. of supporting roller: 1 group/ 4 rollers per group
  • Top roll pressure speed: about 120 mm/min
  • Coiling speed ≈ 3.2 m/min
  • Main motor 90 kW
  • Hydraulic motor 37 kW
  • Motor for shifting 22 kW
  • Overall Dimensions: 9,600 mm (L) x 3,800 mm (W) x 4,300 mm (H)
  • Weight approximately 150 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
