Zhongyang Sams Plate Bending Rolls


China W11S-60x2500 Plate Bending Roll

NHRYL156:

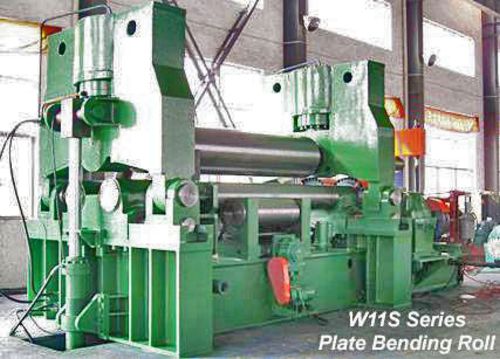

New, China W11S-60x2500 Plate Bending Roll

  • Rolling Thickness 60mm  x 2500mm (at 2400 dia)
  • Prebending Thickness 50mm x 2500mm (at 2400 dia)
  • Top Roll Pressure 610 Tons
  • Top Roll Diameter 620mm
  • Bottom Rolls Diameter 360 mm
  • Distance Between Bottom Rolls Center-to-Center 650mm
  • Plate Width 2500 mm
  • Length of Working Rolls 2600mm
  • Coiling Speed ≈ 3.5 m/min
  • Top Roll Pressure Speed ≈ 120 mm/min
  • Supporting Rollers: 1 group, 4 rollers/group
  • Main Motor 75 kW
  • Hydraulic Motor 30 kW
  • Motor for Shifting 15 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
