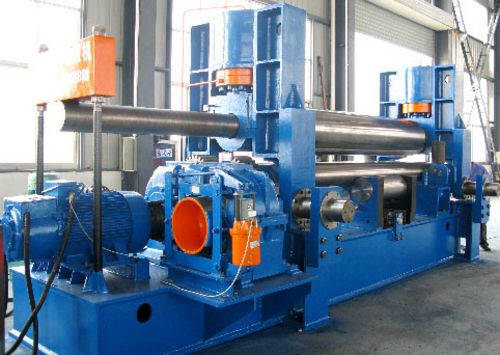

New, China W11S-50x3000 Plate Bending Roll
- Rolling Thickness 50mm x 3000mm (at dia. 2200mm)
- Prebending Thickness 40mm x 3000mm (at dia. 2200mm)
- Top roll pressure 610 ton
- Plate width 3000mm
- Length of working rolls 3100mm
- Top roll diameter 620mm
- Bottom rolls diameter 360mm
- Distance between bottom rolls center-to-center 650mm
- Coiling speed ≈ 3.5 m/min
- Width of straight ends at full loading capacity ≤2.5 x plate thickness
- Supporting rollers: 4 rollers/group, 1 group
- Main motor 55 Kw
- Hydraulic motor 22 Kw
- Motor for Shifting 15 kW
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
