China W11S-40x3000 Plate Bending Roll

NHRYL150:

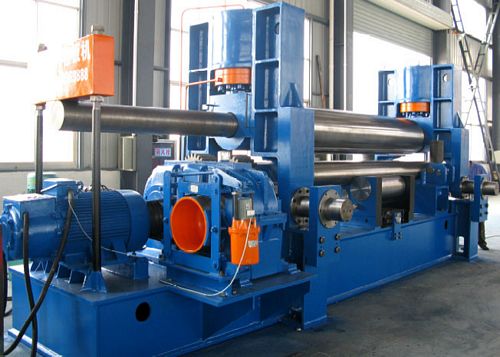

New, China W11S-40x3000 Plate Bending Roll

  • Rolling Thickness 40mm x 3000mm (at dia 1600)
  • Prebending Thickness 35mm x 3000mm (at dia 1600)
  • Top Roll Pressure 430 Ton
  • Type: Top roll NC controlled (economic NC)
  • Plate Width 3000 mm
  • Length of Working Rolls 3100mm
  • Top Roll Diameter 550 mm
  • Bottom Rolls Diameter 290 mm
  • Distance Between Bottom Rolls Center-to-Center 500mm
  • Width of Straight Ends at Full Loading Capacity ≤2.5 x Plate Thickness
  • Rolling Speed: about 3.5 m/min
  • No. of Supporting Rollers: 1 group, 4 rollers per group
  • Top Roll Pressure Speed: about 120 mm/min
  • Main Motor 55 Kw
  • Hydraulic Motor 22 Kw
  • Motor for Shifting 7.5 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
