Zhongyang Sams Plate Bending Rolls


China W11S-30x4000 Plate Bending Roll

NHRYL144:

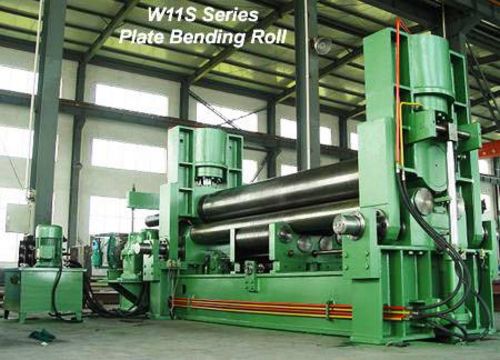

New, China W11S-30x4000 Plate Bending Roll

  • Rolling Thickness 30 x 4000mm (at dia 1800mm)
  • Prebending hickness 24 x 4000mm (at dia 1800mm)
  • Type: Top Roll NC Controlled (Economic NC)
  • Top Roll Pressure 380 Ton
  • Length of Working Rolls 4100mm
  • Plate Width 4000mm
  • Top Roll Diameter 550mm
  • Bottom Rolls Diameter 275mm
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Distance Between Bottom Rolls Center to Center 460mm
  • No. of Supporting Roller: 1 Group, 4 Rollers/Group
  • Top Roll Pressure Speed: about 130 mm/min
  • Main Motor 45 kW
  • Hydraulic Motor 22 kW
  • Motor for Shifting 5.5 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
