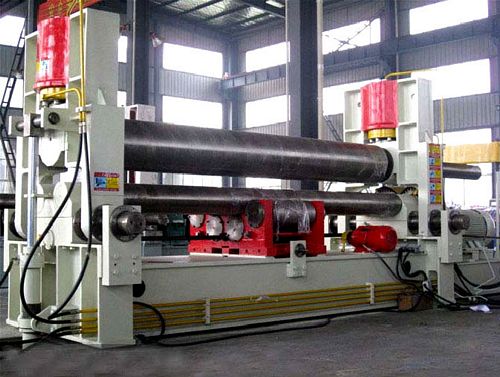

New, China W11S-30x3000 Plate Bending Roll
- Rolling Thickness 30mm x 3000mm (at 1000 dia)
- Prebending Thickness 25mm x 3000mm (at 1000 dia)
- Type: Top roll NC controlled (Economic NC)
- Plate width 3000 mm
- Top roll pressure 270 Ton
- Top roll diameter 450 mm
- Bottom rolls diameter 250 mm
- Distance between bottom rolls center-to-center 400mm
- Length of working rolls 3100mm
- Coiling speed ~ 3.5 m/min
- Top roll pressure speed ~ 130 mm/min
- Width of straight ends at full loading capacity <=2.5mm plate thickness
- Supporting rollers: 4 rollers/group, 1 group
- Main motor 37 Kw
- Hydraulic motor 11 Kw
- Motor for shifting 4 Kw
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
