Zhongyang Sams Plate Bending Rolls

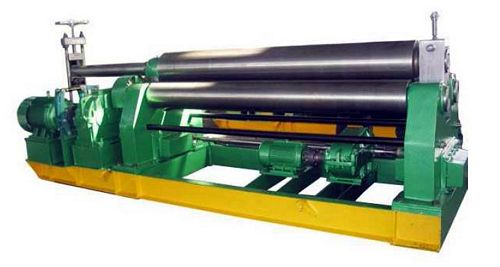

China W11-12x2000 Plate Bending Roll


New, China W11-12x2000 Plate Bending Roll

  • Plate width 2000mm
  • Plate thickness 12mm
  • Pressure 245 Mpa
  • Smallest plate diameter 550mm
  • Top roll diameter 240mm
  • Top roll material: 45# forged steel
  • Bottom rolls diameter 200mm
  • Bottom rolls center to center 300mm
  • Coiling speed about 4 m/min
  • Main motor 11 kW

Video for this machine is available as follows:
Video for NHRYL002

Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
